G1 Mono PERC 5BB

◆ Solar Cell (High Efficiency) Specifications
Dimension Thickness Front Back
158.75 mm x 158.75 mm ± 0.25 mm 180 μm ± 20 μm Blue silicon nitride anti-reflection coatings

Full-Surface aluminum BSF, 5x4 soldering pads

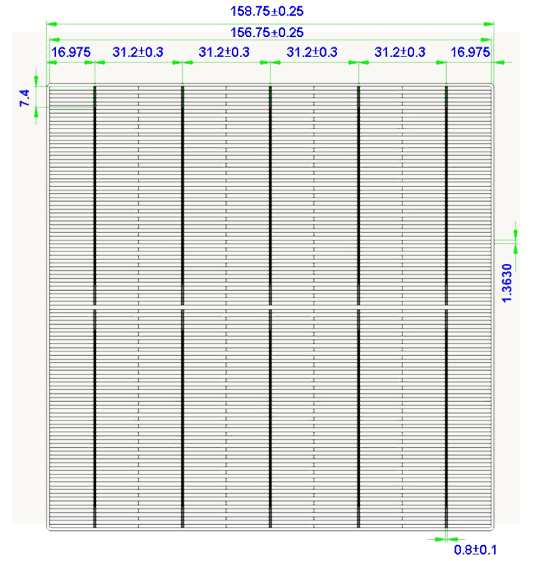

5 silver bus-bars (0.8 ± 0.1 mm),116 fingers

1.6 ± 0.1 mm wide Silver / Aluminum bus-bar
◆ Features
Uniform Color.
Low breakage rate.
High conversion efficiencies resulting.
Superior output power in any condition.
100% inspected performance of products.
All products conform to the regulation of RoHS.
Excellent mechanical performance proven by all customers.
Regularly monitor product performance and soldering properties.
Less power deviation of modules ensured by precise matching of cells, sorted 100% in narrow current classes at constant test voltage.
◆ Production and Quality Control
100% PID Resistance.
Precision cell efficiency sorting procedures.
Reverse current and shunt resistance screening.
Stringent criteria for color uniformity and appearance.

100% in-line inspection for optical

◆ Electrical Performance
Efficiency Code 230 229 228 227 226 225 224 223 222 221 220 219
Efficiency Eff (%) 23.00 22.90 22.80 22.70 22.60 22.50 22.40 22.30 22.20 22.10 22.00 21.90
Power Pmpp (W) 5.796 5.771 5.745 5.720 5.695 5.670 5.645 5.619 5.594 5.569 5.544 5.519
Max Power Voltage Vmp (V) 0.590 0.589 0.588 0.587 0.586 0.584 0.583 0.581 0.579 0.577 0.575 0.574
Max Power Current Imp (A) 9.824 9.798 9.767 9.745 9.718 9.709 9.683 9.671 9.662 9.652 9.641 9.615
Open Circuit Voltage Voc (V) 0.684 0.683 0.682 0.681 0.679 0.677 0.676 0.675 0.673 0.671 0.670 0.668
Short Circuit Current Isc (A) 10.285 10.277 10.264 10.252 10.241 10.235 10.218 10.197 10.182 10.172 10.159 10.146

* Standard Testing conditions(STC): 1000 W/㎡, AM 1.5, 25 °C, Tolerance: Efficiency ± 0.2% abs., Pmpp ±1.5% rel.

* The measurement of cell is calibrated by Fraunhofer ISE.
