Multi-Crystalline Silicon Solar Modules

Multi-Crystalline Silicon Solar Modules
◆ Electrical Performance @ST
Maximum Power Pmax (Wp) 240 245 250 255 260 265 270
Power Tolerance   +/-3% +/-3% +/-3% +/-3% +/-3% +/-3% +/-3%
Solar Cell Type Multi-crystalline 6”
Number of Solar Cells 60 (6 x 10)
Maximum Power Voltage Vmp(V) 29.93 30.28 30.52 30.93 31.16 31.52 31.87
Maximum Power Current Imp(A) 8.02 8.09 8.19 8.24 8.34 8.41 8.47
Open Circuit Voltage Voc(V) 37.43 37.67 37.86 38.16 38.40 38.65 38.89
Short Circuit Current Isc(A) 8.55 8.67 8.80 8.91 9.03 9.14 9.26
Module Efficiency (%) 14.80% 15.10% 15.40% 15.70% 16.00% 16.30% 16.60%
1. STC : Standard Test Condition, 1000 W/ m², AM1.5, 25℃
2. Power tolerance can be adjusted upon requests
3. NOCT : 46±2℃
◆ Mechanical Characteristics

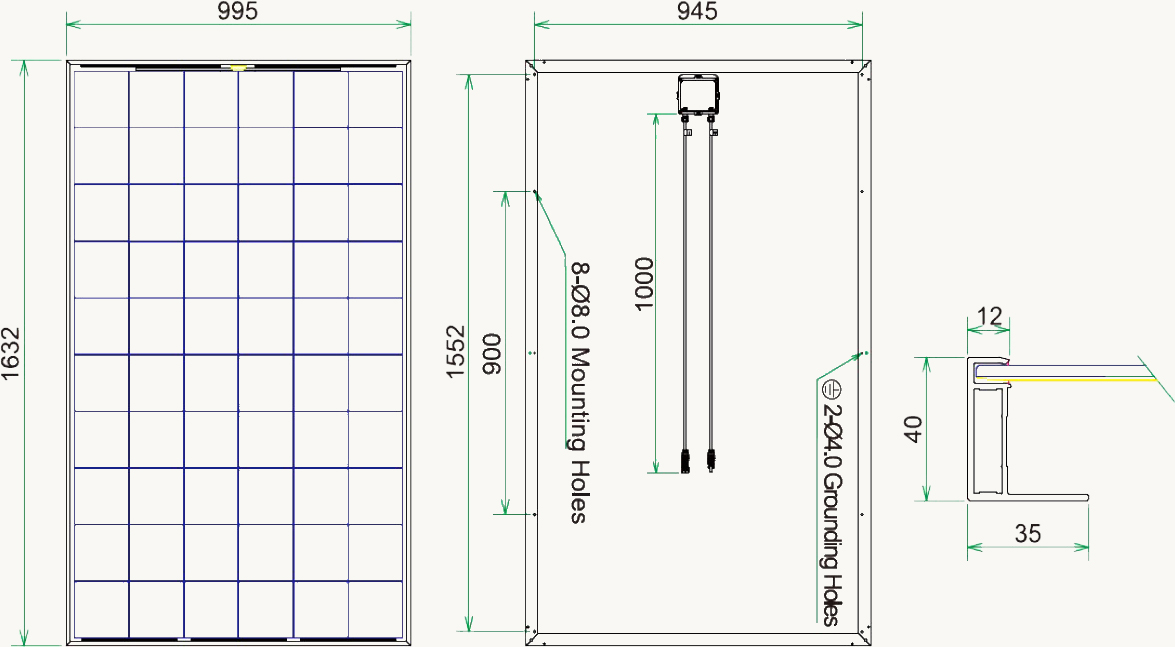

Dimensions of the Module (W x H x D)(mm) 1632 x 995 x 40
Weigh of the Module (kg) 19.5
Junction box IP 65/IP 67 or above with 3 bypass diodes; cables 1M/Ø 4 mm²
Series fuse rating 15A

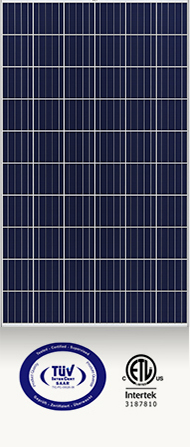

M660 Series 6” Multi-crystalline Solar Cell, 6x10pcs
◆ Mechanical Characteristics
Warranty Working Condition　 Temperature Coefficient
Product Warranty:
5-year limited product warranty		 Maximum System Voltage: 600/1000 VDC Isc Temperature Coefficient: α(%/℃) +0.08
Performance Guarantee:
90% for 10 years Guaranteed output
80% for 25 years Guaranteed output 		Operating Temperature: -40~85℃ Voc Temperature Coefficient: β(%/℃) -0.34
    Pmax Temperature Coefficient: γ(%/℃) -0.43
